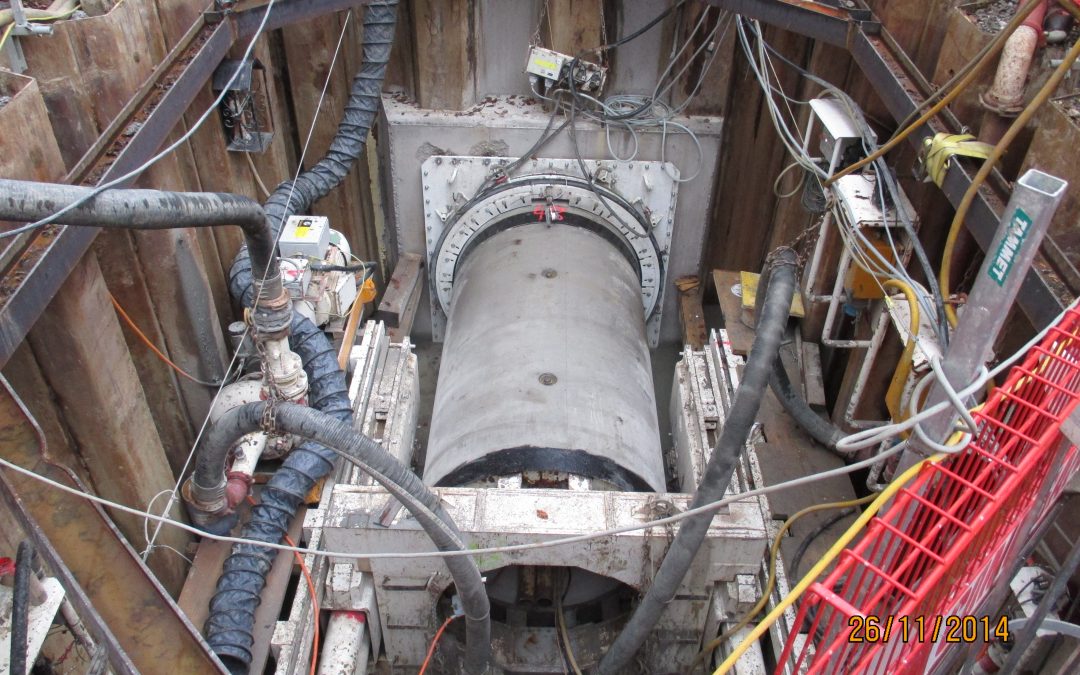

Microtunnel boring machine Le Corbusier / Channeling EC Ø1500 – Switzerland

Microtunnel boring machine Le Corbusier / Channeling EC Ø1500 – Switzerland

Tunnels and underground constructions

  • General Contractor: City of Geneva – Civil Engineering Department
  • Assignment: Project Management
  • Total cost of work: 4,500k CHF
  • Total cost of the assignment: 250,000k CHF
  • Completion Date: 2013-2015

PROJECT DESCRIPTION AND CHARACTERISTICS

The project involves construction of the last section of the high-capacity inter-communal transport gallery (Ø150 cm), allowing for collection of rainwater from the Florissant-La Garance watershed in the district of Malagnou: section Rue Le Corbusier – Chemin de The Boisserette – Chemin de la Chevillarde.

Given the high depth of the collector (4 to 9 meters deep) and the presence of poor quality groundwater (silts and clays not consolidated or even fluent), the study of the project resulted in adoption of a trenchless excavation method and the use of a microtunnel boring machine with maintenance of the confinement head with bentonite pressure.

This technique is the most suitable solution from a technical and economic point of view, making it possible in particular to reduce significantly the impact of surface works (construction site noise, volume of earthworks, trees felling, and traffic).

The main constraints of the project were:

  • Works in a public urban and private residential context, on which the impacts of the construction site at all levels are to be limited.
  • Realization of the firing and reception cells of the microtunnel boring machine, of the drop wells, and the installation of site installations mainly on limited areas with landscaping and equipment to be protected or restored after work.
  • Groundwater deformable sites, with existing buildings nearby, and low tolerances of deviation from the altimetry plot.

Technical characteristics

  • Demolition works
  • Sheet piling (1100m²)
  • Jetting columns Ø800 soil improvement (1800ml)
  • Hydraulic connection of the collector Ø1500 to the microtunnel boring machine: 250ml (first firing); 165ml (second shot in curve, radius of curvature 1500m).
  • Collector Ø1400 in open trench 4-6m deep (20m)
  • Reinforced concrete chambers, 8m deep: concrete (400m³) Armature (56T)
  • 2 private connections Ø250 per directional drilling (20m)
  • Pavement repairs



ASSIGNMENT

As a civil and geotechnical engineering firm, GEOS has carried out a project management mission comprising the following tasks/duties:

  • Invitation to tender,
  • Execution project,
  • Construction management,
  • Commissioning and completion.

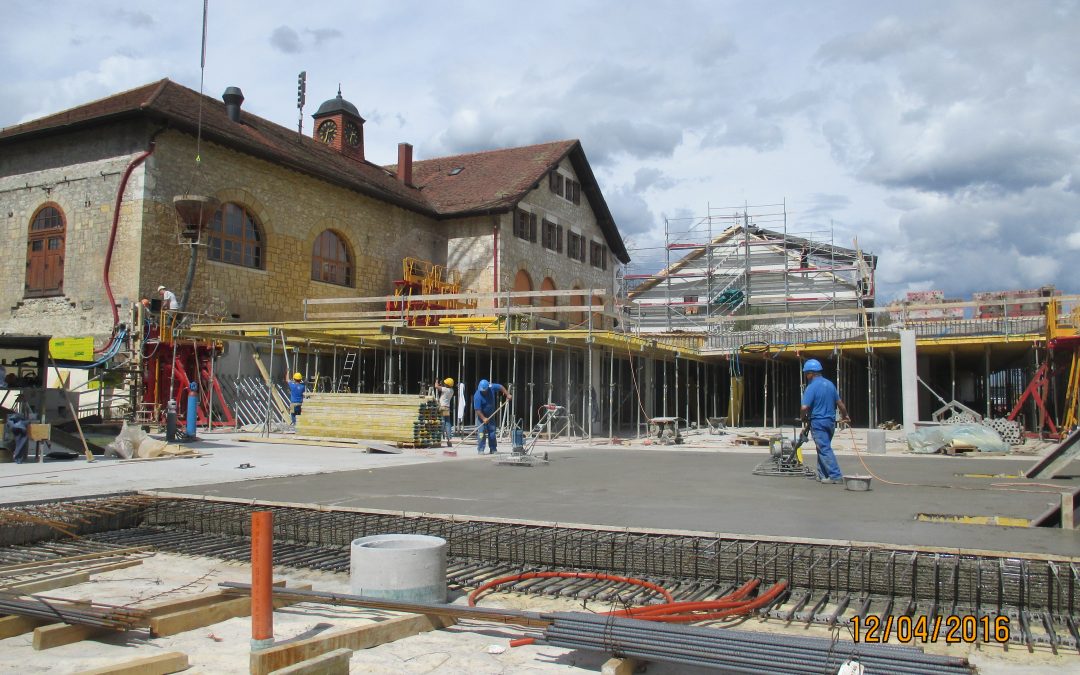

Semi-underground Parking – Russin – Switzerland

Semi-underground Parking – Russin – Switzerland

Tunnels and underground constructions

  • General Contractor: Municipality of Russin (Switzerland)
  • Assignment: Partial Project Management
  • Total cost of work: 4,500k CHF excluding VAT
  • Total cost of the assignment: 250k CHF excluding VAT
  • Completion Date: 2015-2016

PROJECT DESCRIPTION AND CHARACTERISTICS

The project consists of creation of a communal parking of 40 places on the edge of existing buildings and classified heritage.

The main constraints of the project were:

  • Determination of the soil and hydrogeological conditions by a geotechnical survey carried out by our office,
  • Design of the structure and support methods in line with hydrogeological conditions,
  • Control of vibrations and supports to avoid damage to neighboring buildings,
  • Maintenance of the medium-voltage GIS network at all times
  • Design of a slab structure that is compatible with the architectural project (integration of 6-ton shaft bins)

Technical characteristics:

  • Perforated vibro-piles (2’000 m²) on the edge of existing buildings
  • Earthworks (7’000 m³)
  • Dalle ep. 60cm (1’700 m²)
  • Radier ep.50cm (1,700 m²)
  • Casing (1,700 m²)
  • Pillars with punching frame
  • Concrete (2,500 m³), reinforcement (250 tons)

ASSIGNMENT

As a civil and geotechnical engineering firm, GEOS carries out a mission of Partial Contractor with the following tasks/duties:

  • Final project,
  • Invitation to tender,
  • Execution Project,
  • Construction management.

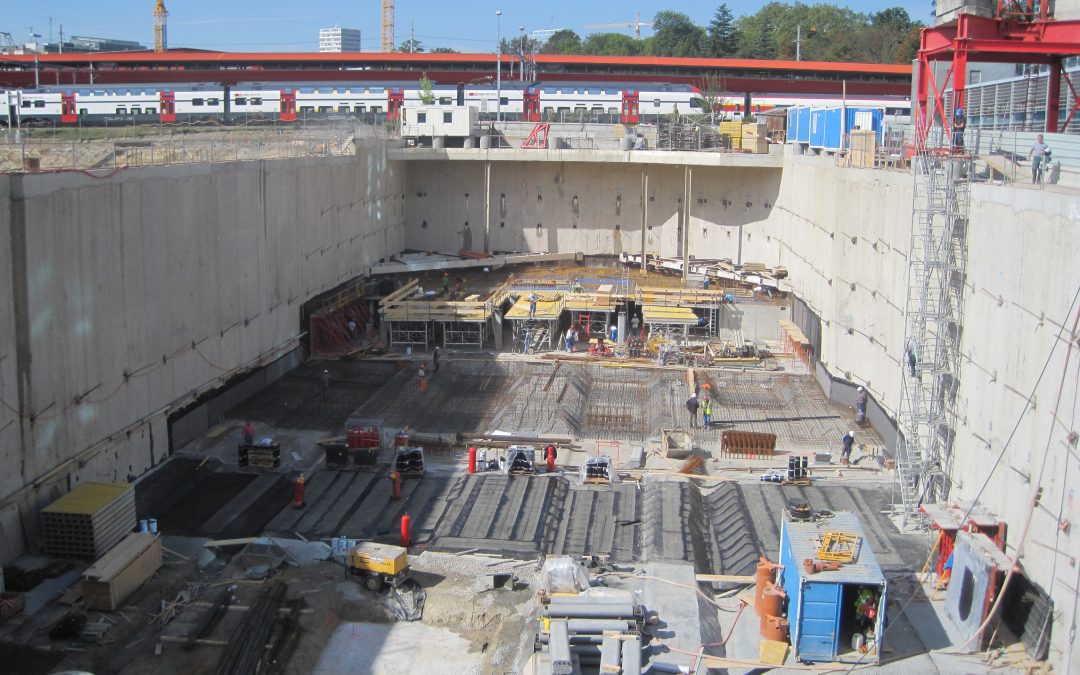

Underground Parking – World Trade Organization (WTO) – Switzerland

Underground Parking – World Trade Organization (WTO) – Switzerland

Tunnels and underground constructions

  • General Contractor: Department of Urban Planning (City of Geneva)
  • Assignment: Complete project management
  • Total cost of work: 29’000,– kCHF
  • Total cost of the assignment: 805,– kCHF
  • Completion date: 2011-2015

PROJECT DESCRIPTION AND CHARACTERISTICS

This project involved creation of a parking lot for the World Trade Organization (WTO). It has four levels of underground parking (400 spaces) and will accommodate a building of 8 levels in superstructure.

The site is bordered by the SBB lanes, the World Meteorological Organization (WMO), and is located in a dense and rapidly changing urban area. Thus, within the framework of this project, it was necessary to take into account the neighboring projects and to analyze their influence on the dimensioning of the structure, and the phasing of implementation, among others.

The main issues of the project were:

  • Protection of the groundwater (piezometric monitoring, so called jambes de pantalon reinforced walls),
  • Evacuation of polluted areas (establishment of a precise earthwork phasing in order not to pollute healthy land).
  • Construction of a building site in a dense urban environment,
  • Realization of a deep excavation at the edge of existing buildings and railway tracks in service.

Technical characteristics:

  • Parking enclosure in a molded wall 60cm thick (5,560 m²)
  • Drawing of active anchorages (3T15S) (200 anchorages and 2,500 ml of boreholes),
  • Heavy digging of the excavation enclosure,
  • Excavation of land at polluted sites (approximately 45,000 m³),
  • Casing below ground level for the last 2 levels of the parking,
  • Concrete (7,500 m³), Reinforcement (800 tons).

ASSIGNMENT

As civil engineers and geotechnical engineers belong to its international and multidisciplinary group, GEOS carried out a mission of complete Project Management including the following services:

  • Pre-project,
  • Final project,
  • Application for permission to build,
  • Invitation to tender,
  • Execution project,
  • Construction management,
  • Commissioning and completion.

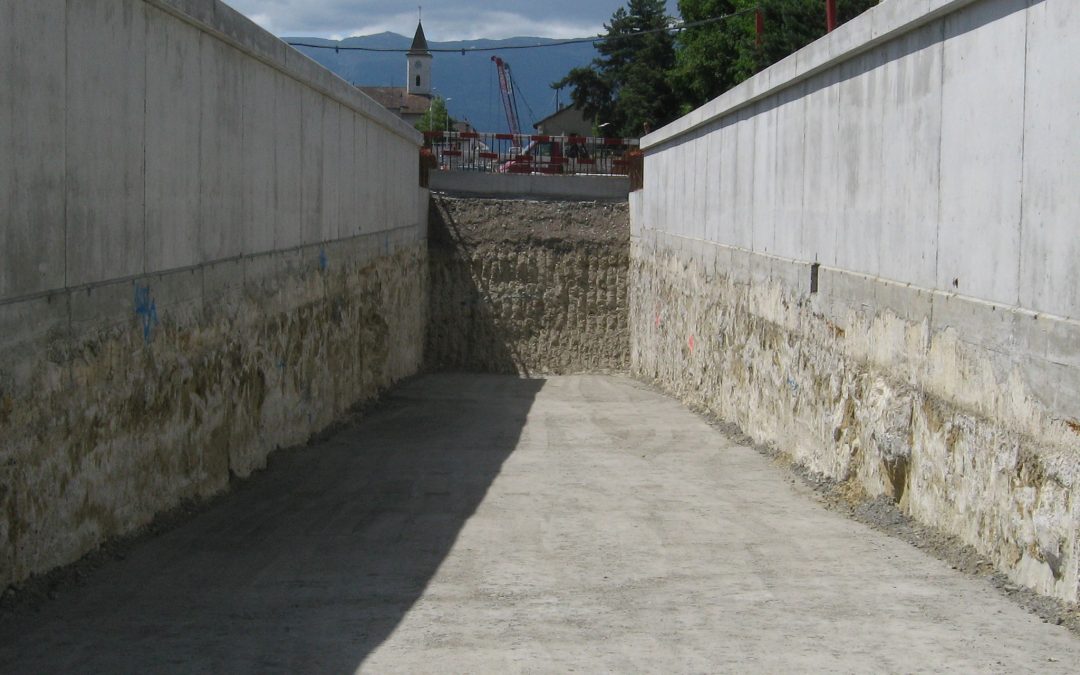

Cut and cover tunnel – Meyrin Village – Switzerland

Cut and cover tunnel – Meyrin Village – Switzerland

Tunnels and underground constructions

  • General Contractor: State of Geneva (Switzerland)
  • Assignment: Complete project management
  • Total cost of work: 70,000 kCHF
  • Total cost of the assignment: 4,400 kCHF
  • Completion date: 2005-2011

PROJECT DESCRIPTION AND CHARACTERISTICS

The Meyrin covered trench project was part of the final stages of the Tram-Cornavin-Meyrin-CERN (TCMC) project. The aim was to make the traffic in the village of Meyrin (25,000 v / d) more fluid and to build a tram extension towards CERN. The coverage of the road to Meyrin was done by the realization of the covered trench. The tram’s tracks were realized on the backfilled slab.

The work resulted in the creation of:

  • A covered trench of 715 ml,
  • Two 95 ml circulation hoppers,
  • A zone of technical rooms dedicated to the operating systems of the structure,
  • Two 3.50 ml gauges,
  • Three SOS niches
  • Three emergency exits

Technical characteristics:

  • Molded walls 60 cm and 80 cm (17,800m²) thick,
  • Drilled piles with a 80 cm diameter (2,000 ml),
  • Concrete (15,950 m³), reinforcement (1,250 tons),
  • Provisional nailed walls (400m²),
  • Earthmoving en taupe (27,500 m³),
  • Open and screened excavations (56,100 m³),
  • Pavement structure (6,000 m³), bituminous pavements (1,970 t),
  • Installation of drainage and drainage networks (24,500 ml),

The main constraints of the project were:

  • Maintenance of accessibility to the center of the Village for shops and emergency services despite the small size of the site,
  • Maintenance of circulation of the existing cantonal road during the execution of the works,
  • Maintenance of existing networks
  • Proximity of the existing lines and buildings

ASSIGNMENT

As civil engineers and geotechnical engineers belong to its international and multidisciplinary group, GEOS carried out a complete project management mission including the following services:

  • Pre-project,
  • Final project,
  • Application for permission to build,
  • Invitation to tender,
  • Execution project,
  • Construction management,
  • Commissioning and completion.

GEOS Ingénieurs Conseils, pilot of the GETM consortium, also carried out the following coordination missions:

  • Administrative management of the project.
  • Coordination of the technical design of the structure.
  • Control of the financial management of the project.
  • Management of technical responsibility: Civil Engineering, Geotechnics, Geology, Waste Management and Special Works.
  • Technical and administrative management of subcontractors for electromechanical equipment useful for the safety of users, ventilation, lighting, signaling, video surveillance, fire detection and defense, acoustics and landscape architecture.

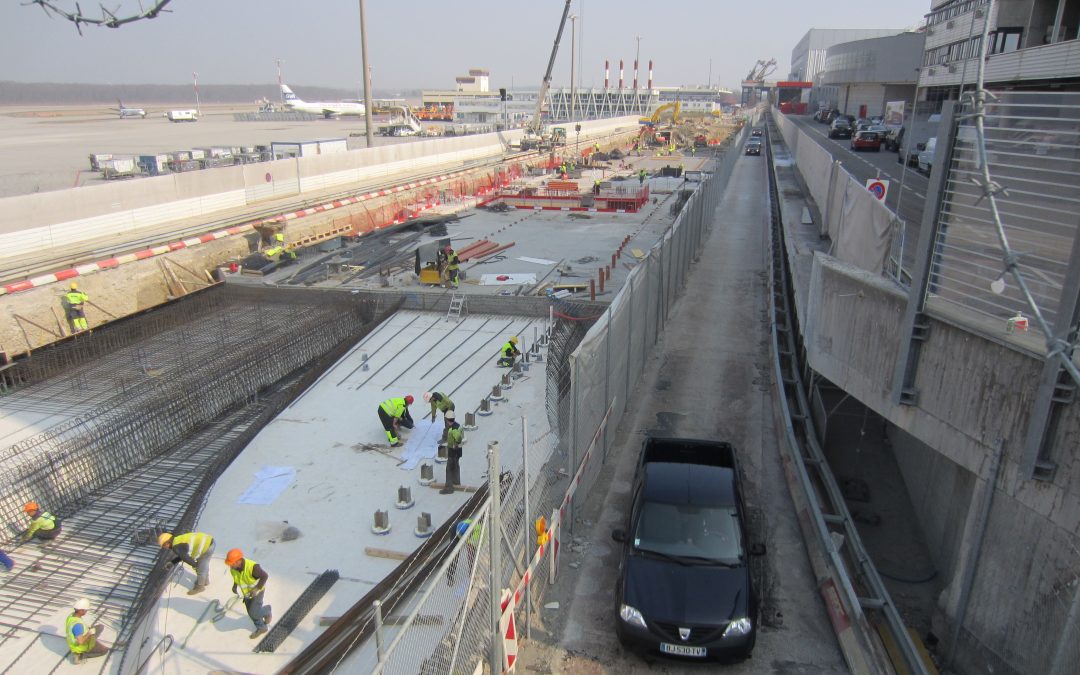

Cut and cover tunnel – Customs Road – Geneva Airport – Switzerland

Cut and cover tunnel – Customs Road – Geneva Airport – Switzerland

Tunnels and underground constructions

  • Client: Geneva Airport (Switzerland)
  • Assignment: Full project management
  • Total cost of work: 35,000 kCHF
  • Total cost of the assigment: 4,000, – kCHF
  • Completion date: 2013-2015

PROJECT DESCRIPTION AND CHARACTERISTICS

The project consists of the burial of the existing customs road and is A part of the project Aile_EST (construction of a new terminal “Big Carriers”) of Geneva International Airport. This work will also be the foundation of the future Aile_EST terminal. The work resulted in the creation of:

  • technical gallery of 250ml,
  • two 250ml traffic lanes,
  • technical premises zone (approximately 1,500m²) dedicated to the future terminal,
  • 2,500m² storage platform above the traffic lanes,

The main constraints of the project were:

  • Maintenance of full airport operations at all times despite the small size of the site,
  • Maintenance of traffic on the existing customs road during the execution of the works,
  • Maintenance of existing networks in underground technical galleries
  • Earthmoving with the use of geothermal probes.



Technical characteristics:

  • Molded walls 60cm and 80cm thick (8,000m²),
  • Drilled piles 60cm and 80cm of diameter (2,000 ml), static tests of piles,
  • Concrete (12,500 m³), reinforcement (1,500 tons),
  • Provisional supports in nailed walls (1,400m²), Berlin walls (1,600m²),
  • Earthmoving (45,000 m³),
  • Tarmac concrete (6,500 m²), bituminous coatings (6,200 m²),
  • Installation of drainage and drainage networks (2,500 ml),
  • Demolition works.

ASSIGNMENT

As civil engineers and geotechnical engineers belong to its international and multidisciplinary group, GEOS carried out a complete Project Management mission including the following services:

  • Pre-project,
  • Final project,
  • Application for permissions to build,
  • Invitation to tender,
  • Execution Project,
  • Supervision and management of construction works
  • Commissioning and Completion.
