Civil and structural Engineering
- Client: IMPLENIA Development SA
- Assignment: Full civil engineering specialist services
- Total cost of work: 18,500k CHF (complete work)
- Total cost of the assignment: 400k CHF
- Completion Date: 2009-2013
PROJECT DESCRIPTION AND CHARACTERISTICS

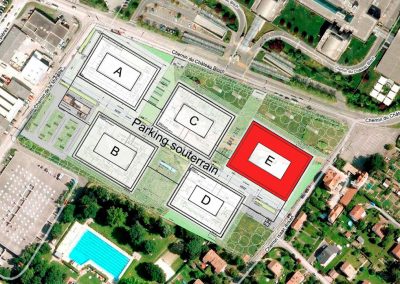

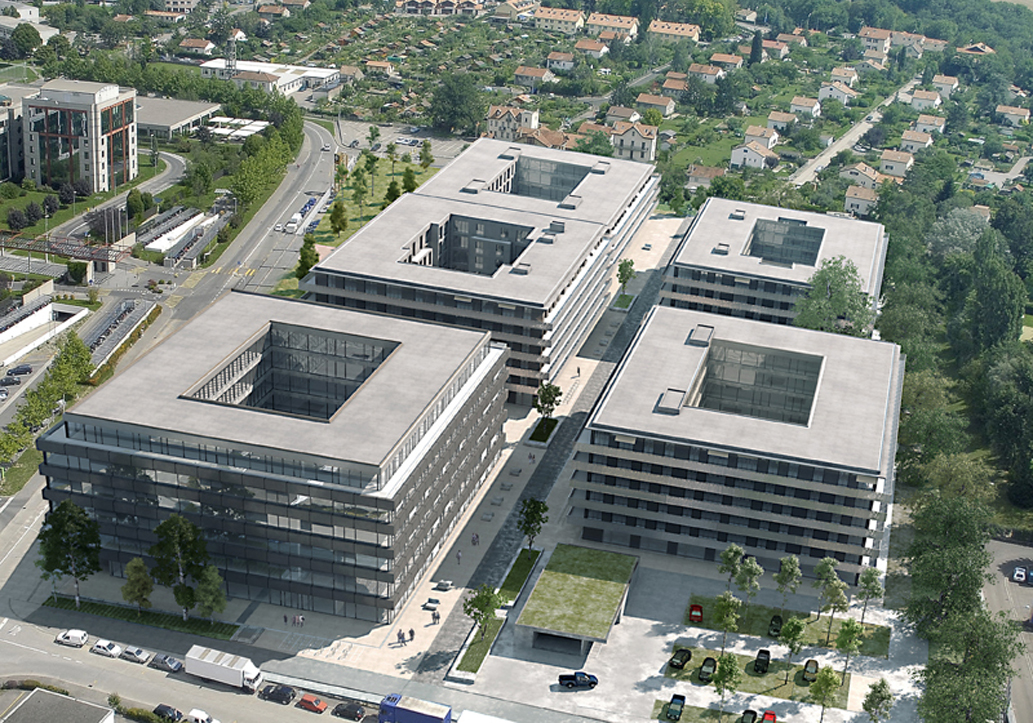

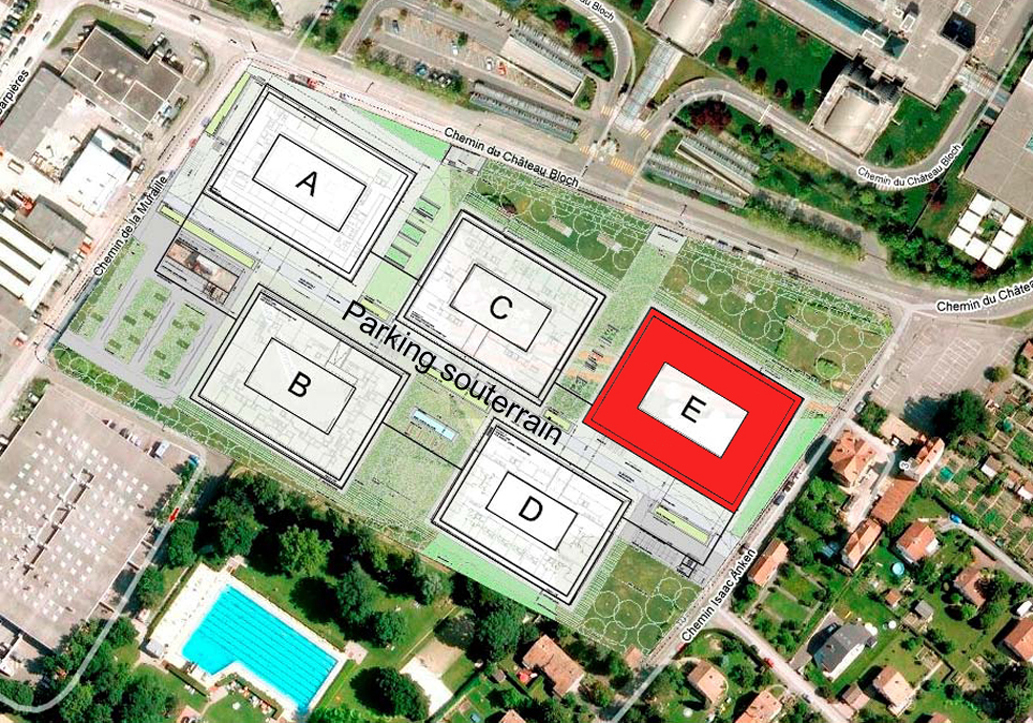

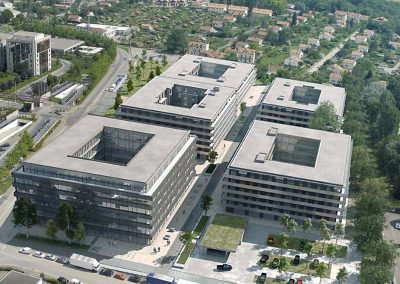

Located in Vernier township between the Lignon swimming pool and the GIS building, the “Coupe Gordon Bennett” project consists of five buildings around a common underground parking of 512 spaces. The housing complex offers 277 apartments (rental 177, condominium ownership 100) and 2,280 m² of retail space distributed between buildings B to E, as well as 13,400 m² of office space in building A.0.

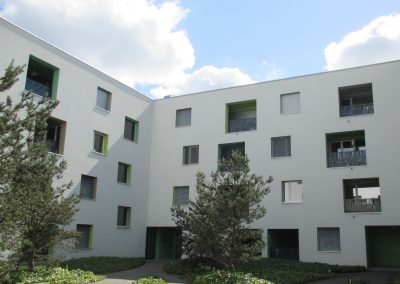

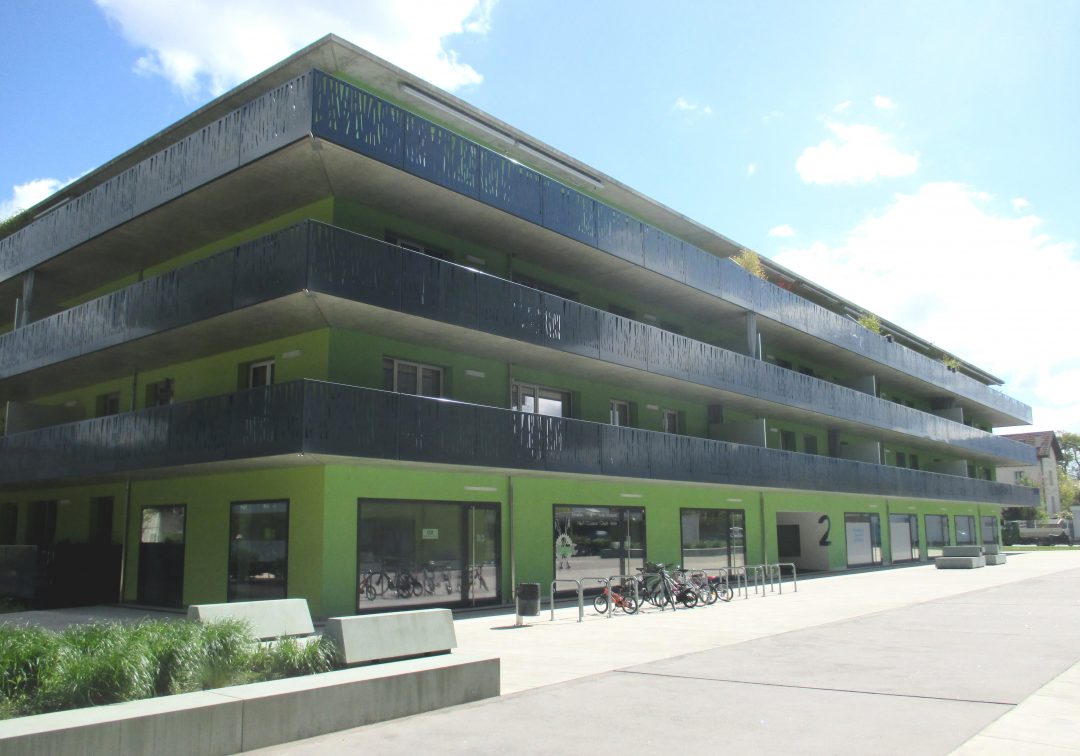

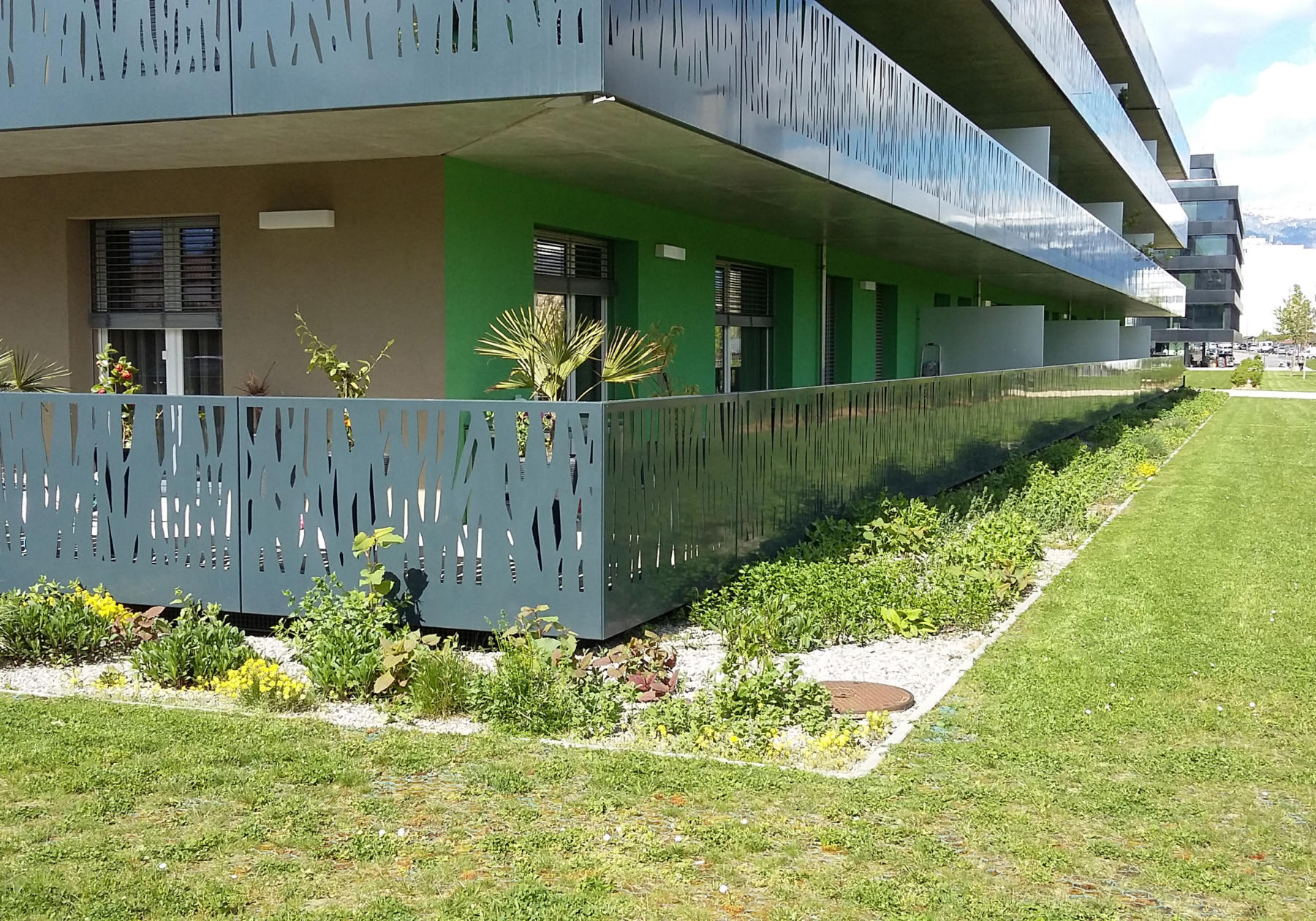

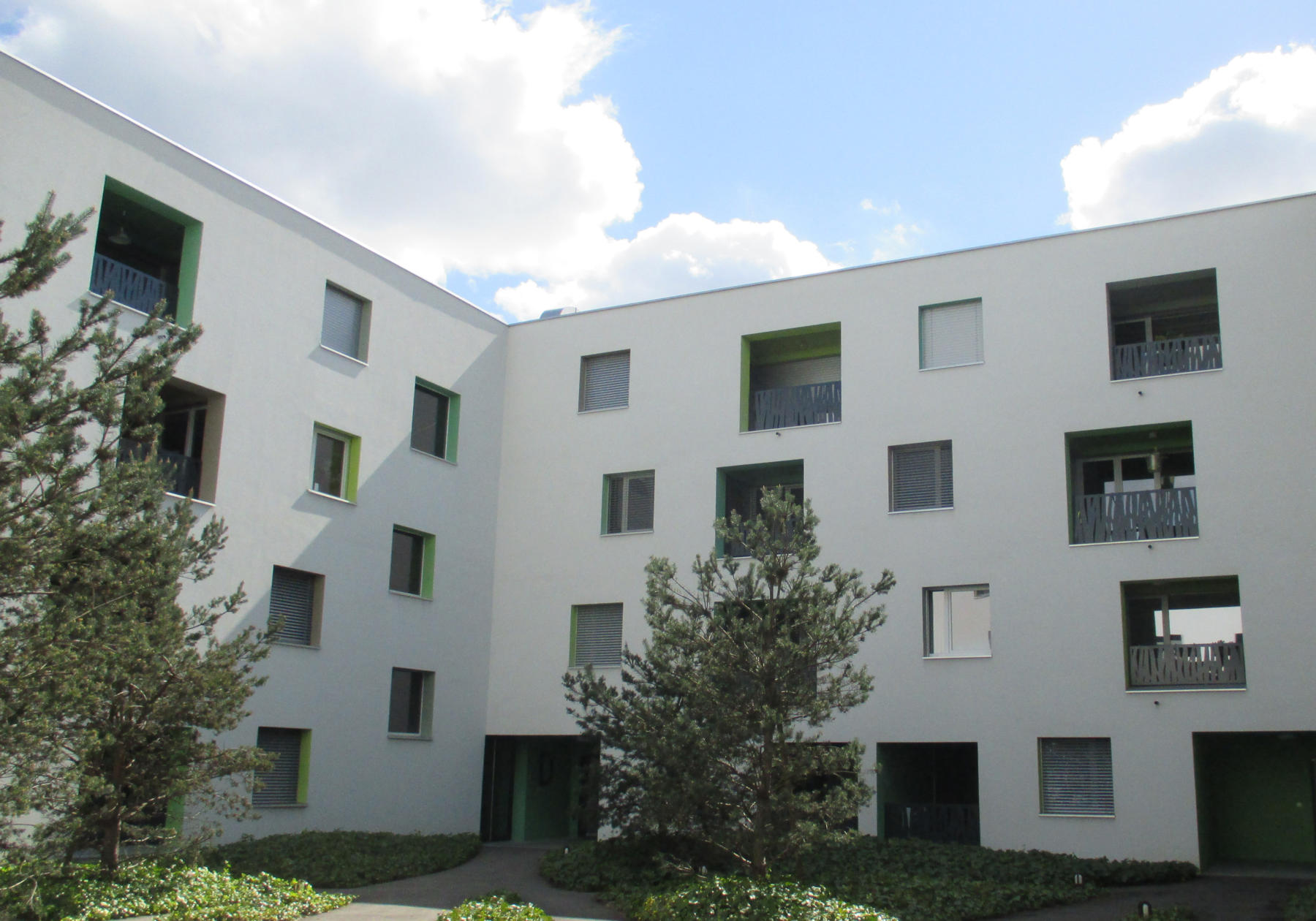

Building E, designed for condominium ownership, includes two floors above the ground floor level, an attic and two underground levels. It comprises 44 apartments of 3 to 6 rooms and 514m² of commercial space. The structure consists of 1,800 m² surface area of 22cm thick flat slabes, leaning on a network of columns and walls. The complex partially covers the common two-floor parking underground. The entire retaining structure of the building is made of reinforced concrete.
ASSIGNMENT
Holder of the mandate for structures, civil engineering and special works for building E. The services were carried out in the legal company name of Sansonnens SA, which joined GEOS in 2014.
Realization of the complete services under the SIA 103 (Swiss Standard), ie: project studies, tender and implementation (project execution and follow-up work).
