Geotechnical software GEOSPAR 2014

Sizing of nailed wall cladding

Calculation of steel sections and support plates

Download GEOSPAR 2014
Ask for information
Consult the brochure
Consult the user’s manual

Fast and interactive

Geospar calculates steel sections in the cladding, allowing for bending, cracking and punching.

i

In accordance with Eurocodes 2

Geospar allows sizing according to Eurocodes 2 general or specific to bridges.

Reliable models

Geospar has been used for several years to dimension facing of many nailed walls.

Effective assistance

The user benefits of assistance from an experienced design office

Quick and interactive modeling

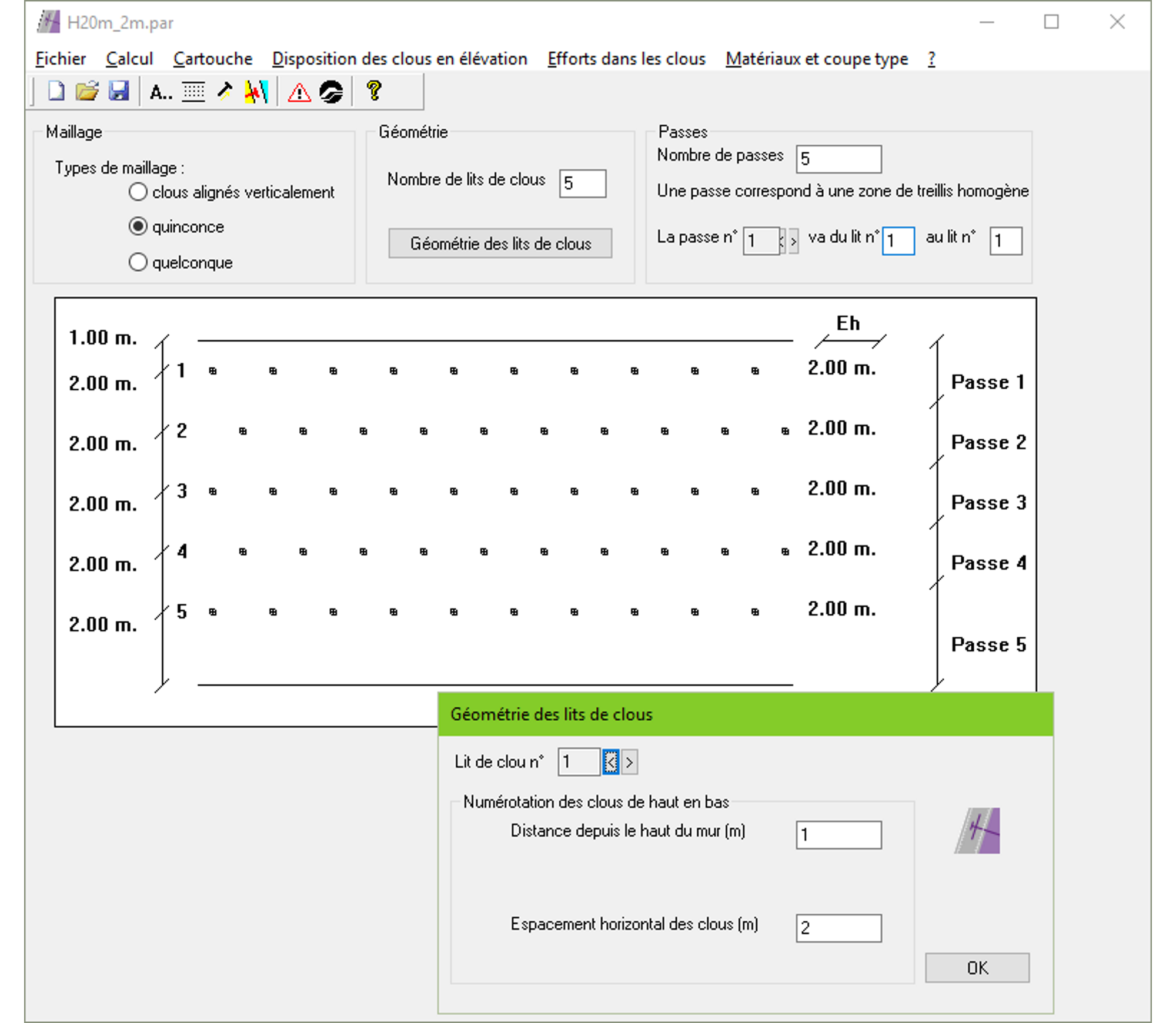

  • Definition of simple or complex meshes in elevation

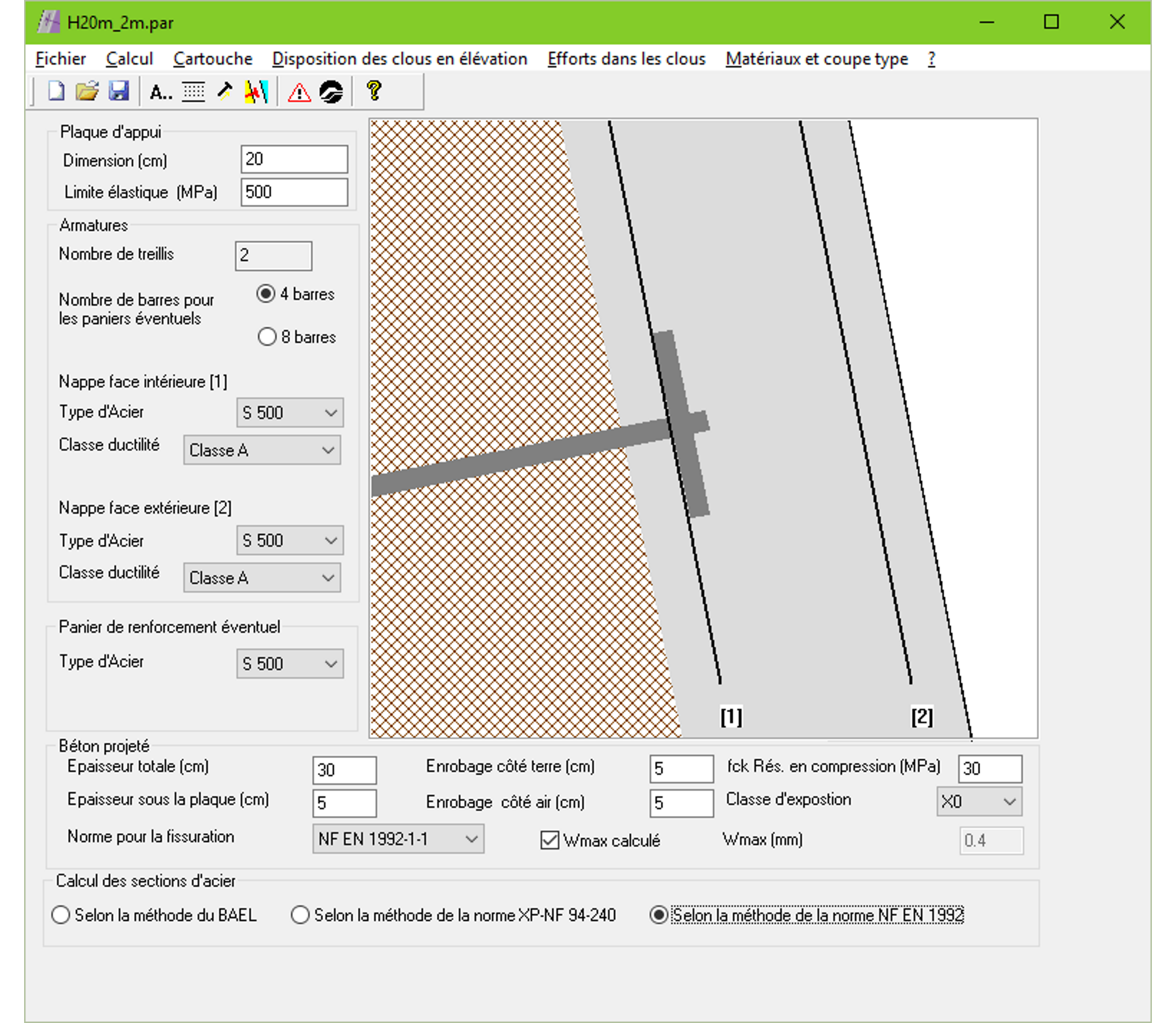

  • Definition of mechanical characteristics of cross-section facing
  • Import of cladding forces from GEOSTAB

Clear and concise results

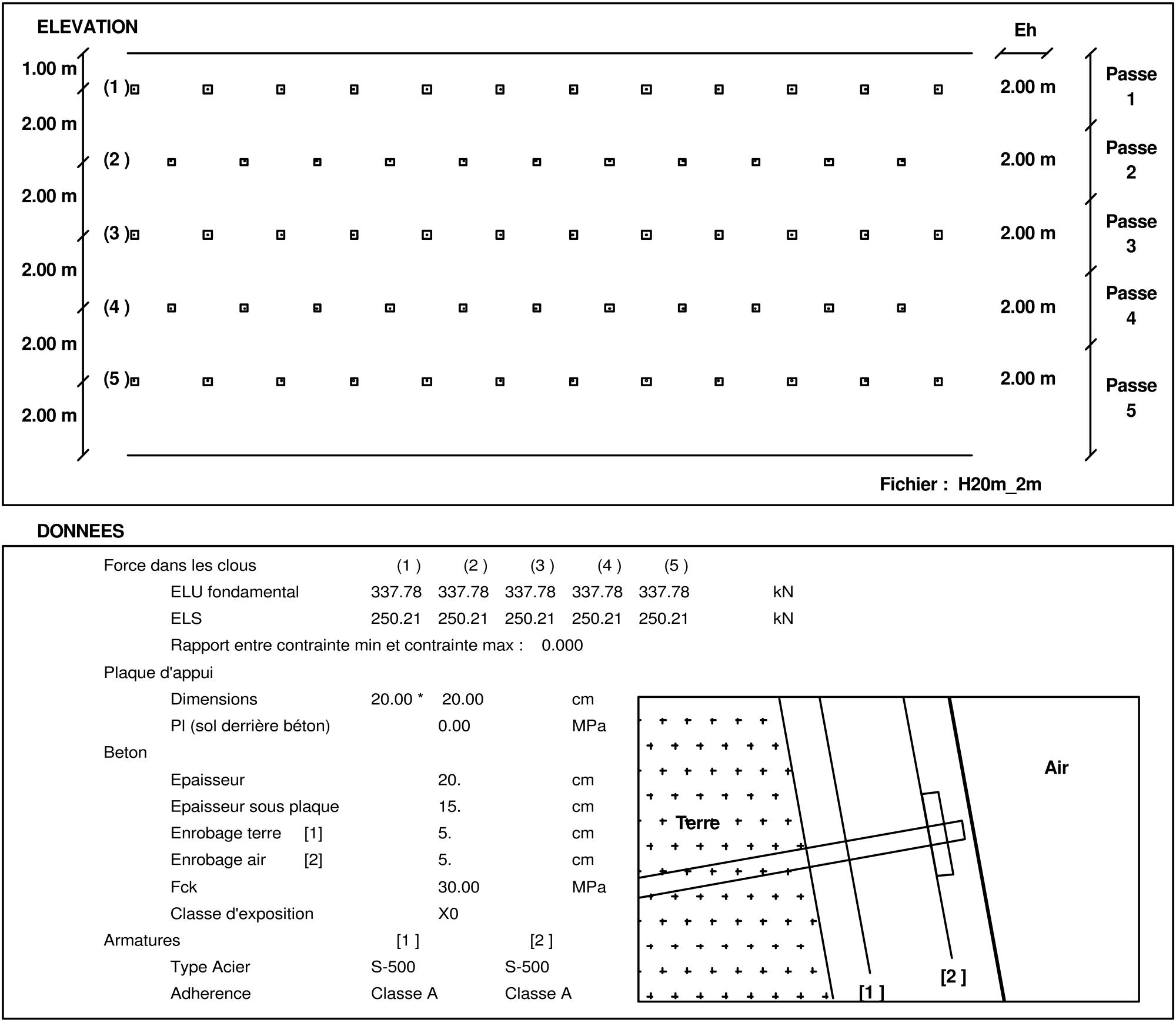

  • Systematic recall of all data
  • Synthesis equivalent to a calculation note
  • Sizing of steel sections

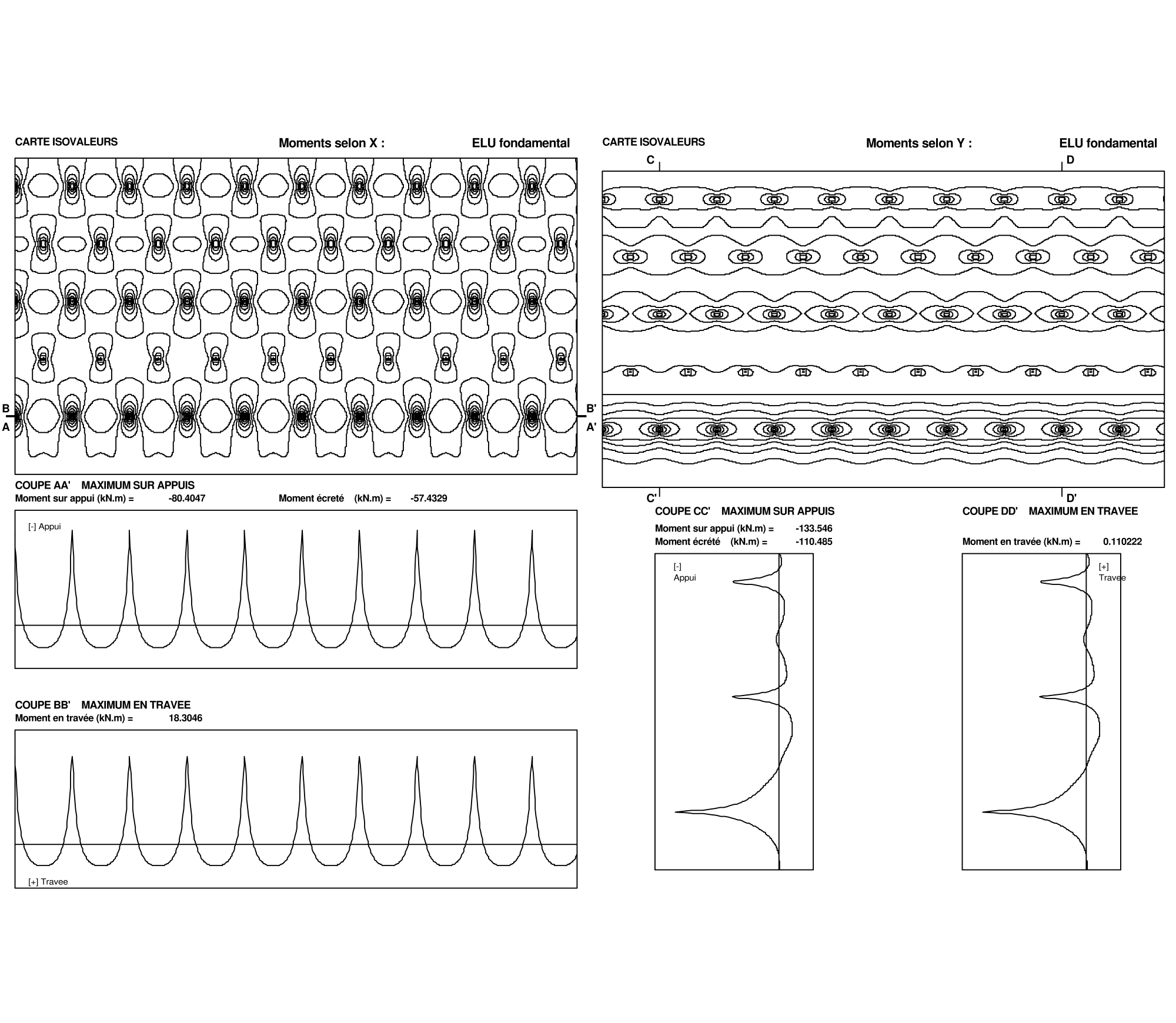

  • Mapping and contouring software

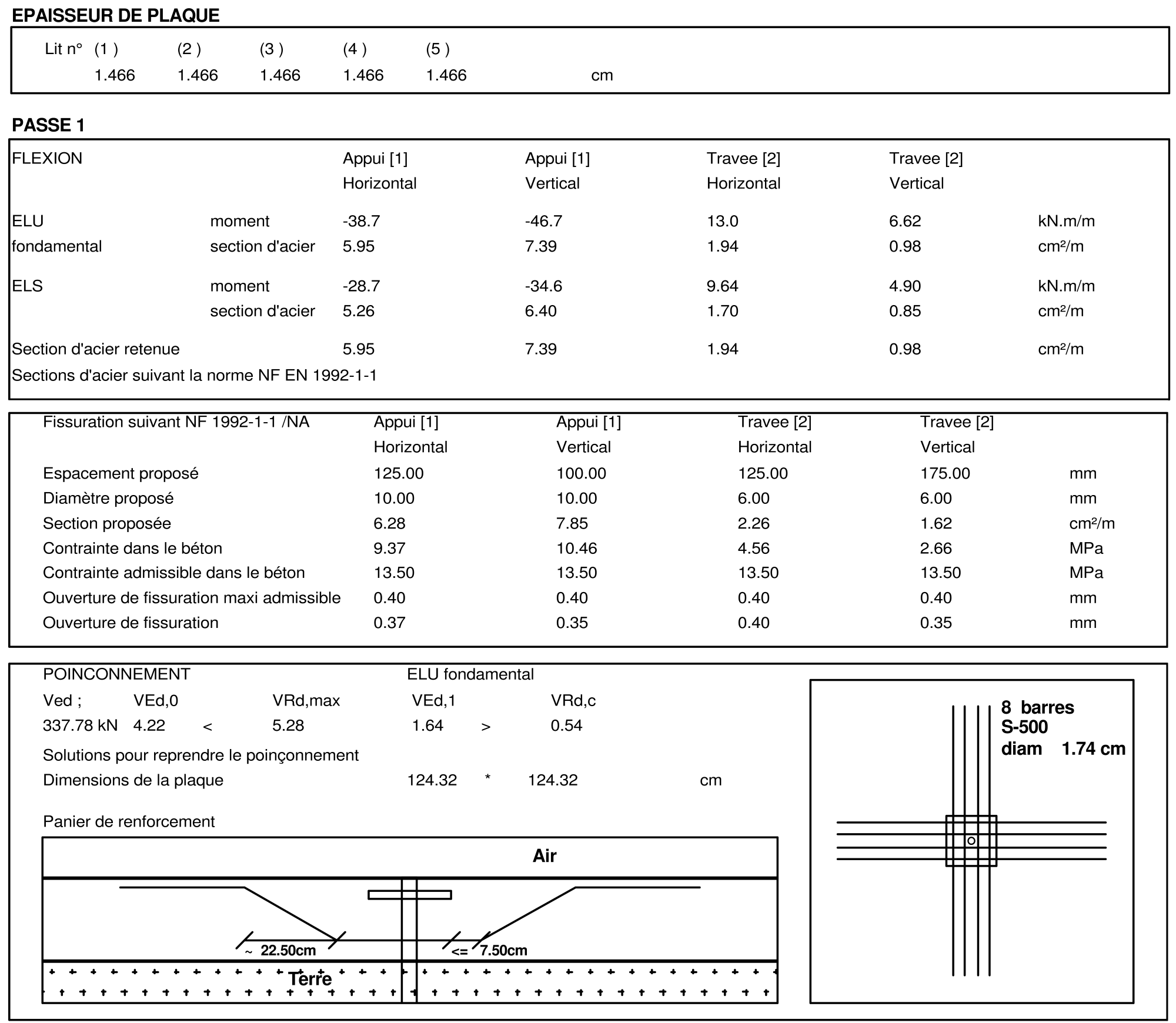

The GEOSPAR software verifies

  • Steel sections with bending moments
  • Condition of non-fragility of the wall according to the cracking criterion
  • Punching of bearing plate on facing

Calculations according to current standards

  • GEOSPAR models the siding as a rigid plate on point supports
  • The reinforcement sections are calculated according to BAEL 91 or NF EN 1992 (Calculation of concrete structures)

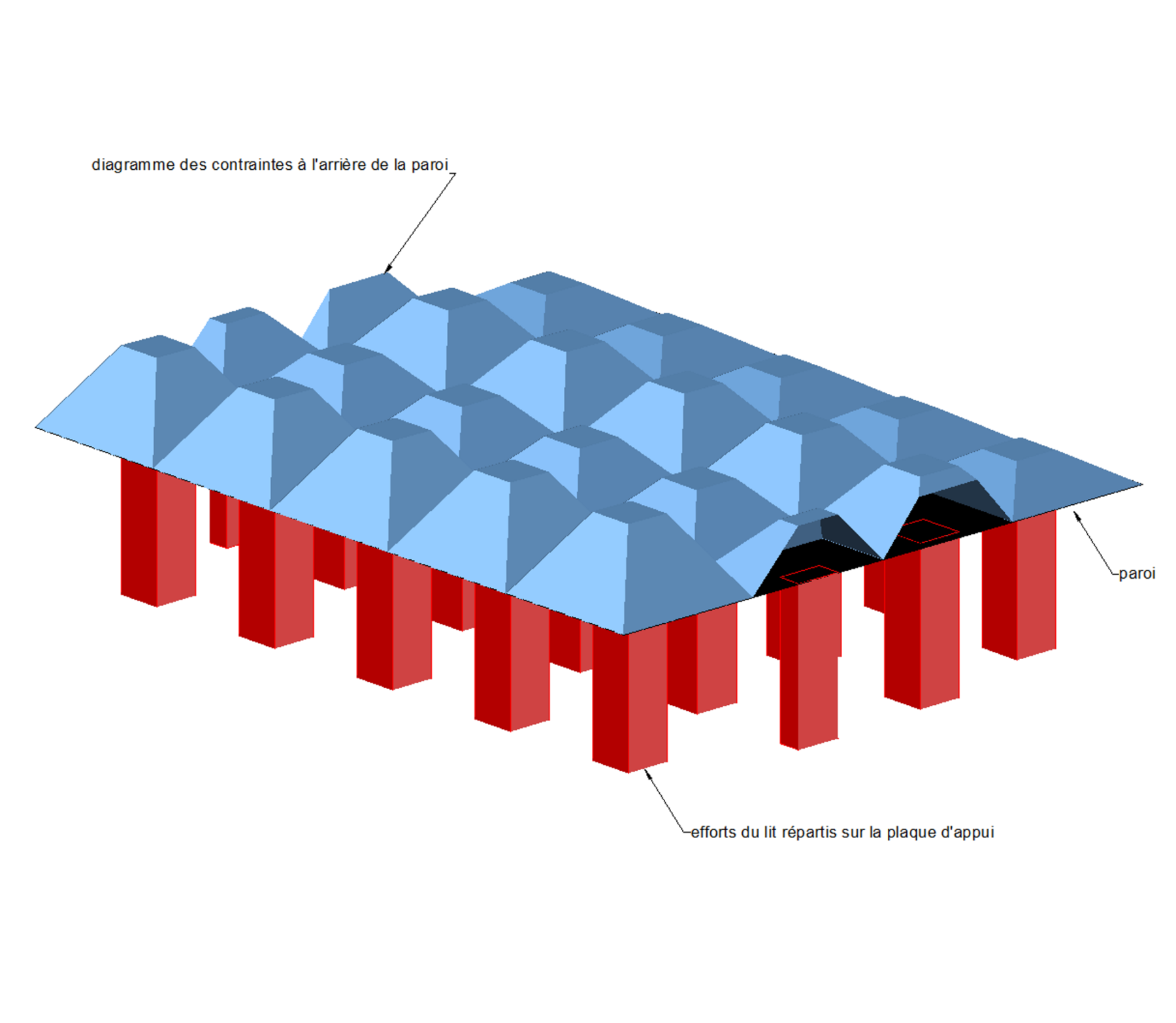

  • GEOSPAR distributes the loads applied to the cladding either in strips or trapezoidally with zero or non-span stress

Client since 2005, GIA Ingénierie is a consulting firm involved in applied geology, natural hazards, expertise and surveys.



Client since 2016, ARIAS Montagne is a design office specialized in geology, geotechnics and natural hazards.



Client since 2015, Rocca e Terra is an independent consulting engineering firm specialized in geotechnics, geophysics, geology, and underwater inspections.

Site web

Client since 2013, SB Ingénierie is positioned as a major office in French-speaking Switzerland in the field of civil engineering.

Site web

Client since 1998, Sol Etude, has been a consulting office specialized in geotechnical engineering.

Site web

Since 2015, the Engineering School in Nancy has trained civil engineering students, preparing students for various civil engineering, environmental and risk related professions.

Site web

Client since 2011, SGC (Société Générale de Confortments), offers multi-technical solutions for the supports and foundations of various structures.

Site web

Customer since 2007, ERG is a design office specialized in geotechnics, but also in sites decontamination and environment.

Site web

Client since 2012, Phi-Prim is a design office specializied in design and construction studies for geotechnical structures.

Client since 2006, Fondaconseil, with 35 years of experience, specializes in soil analysis, geotechnical analysis and consulting.





Site web

Client since 2012, RAZEL-BEC has been a major contributor to the construction of transport infrastructures, energy production, and infrastructure related to food and water treatment.

Site web

Client since 2011, GEOTEC is a consulting company in geotechnical and environmental engineering that advises all the parties involved in the act of building.

Site web

Client since 2004, SIGSOL is a consulting company and consulting engineers related to the applications of geology, geotechnics and the environment.

Site web

Client since 2005, IMS RN is an independent geotechnical engineering office specialized in prevention and reduction of natural geological hazards.

Site web

Client since 2013, Geolithe is a consulting engineering office specialized in geology, geophysics, geotechnics and civil engineering, and natural hazards.



Site web

Client since 2015, the LNTPB, located in Madagascar, is a study, control and applied research institution with about sixty years of experience.

Site web

Client since 2005, SIC Infra 42 specializes in geotechnics, performing floor surveys from single-family homes to major industrial and commercial projects.

Site web

Number of operating licenses in France

We regularly use GEOSTAB, GEOSPAR and GEOMUR software to calculate retaining structures. Interfaces are interactive and user manuals are detailed.

Printable renderings are easily understandable even for novices.

Laurène ROUCHIER

Structural Engineer, BET Taylor

Get the latest version of GEOSPAR 2014

This link allows you to download the latest version of GEOSPAR 2014:

  • Try the trial version, allowing you to complete and unlimited use GEOSPAR for 10 days. So you could see for yourself the relevance of GEOSPAR to your geotechnical projects.
  • Full version if you already have a protection key.
Download now
